DIN-Rail Mount, 48 Channels DMX Scene Controller, Smart-BUS Enabled seamlessly connects S-BUS-enabled systems to DMX-controlled lighting networks. Supporting up to 48 channels, it enables precise, multi-zone lighting control for smart buildings, theaters, and commercial spaces. Its plug-and-play design ensures fast installation and reliable communication, making it ideal for advanced automation setups, energy-efficient lighting, and IoT-based smart lighting systems

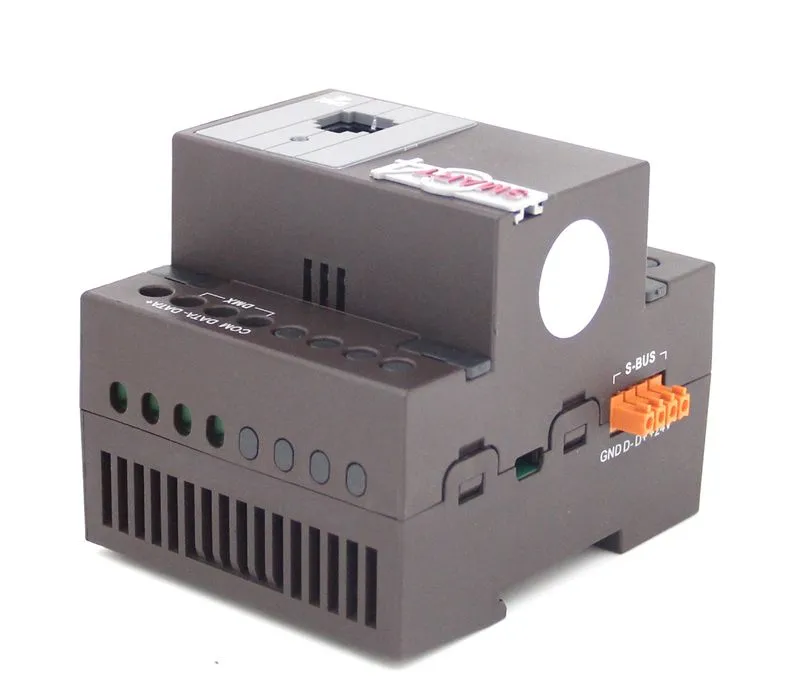

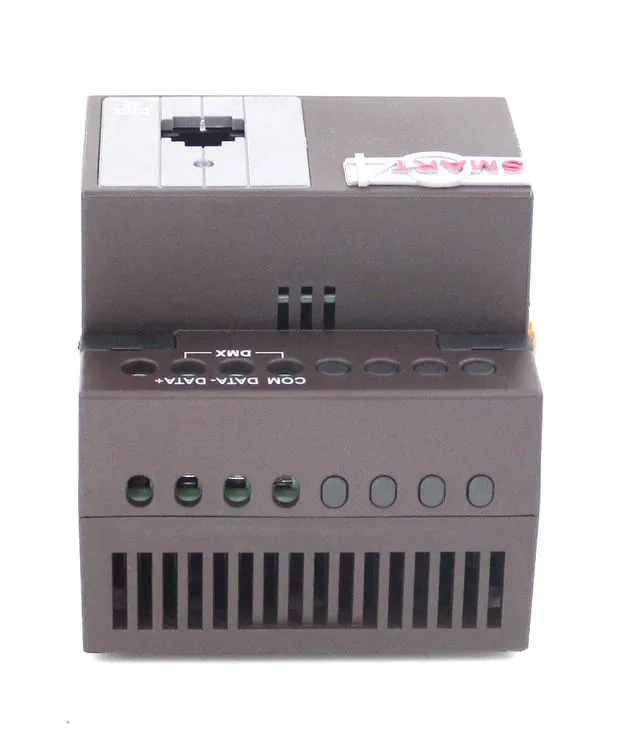

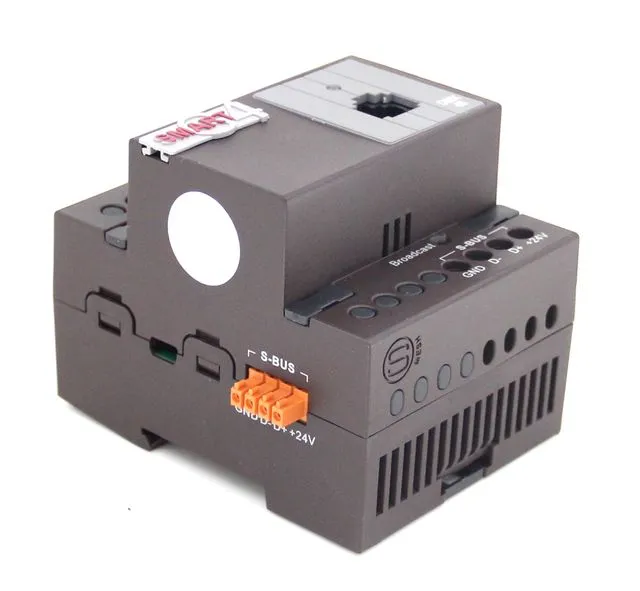

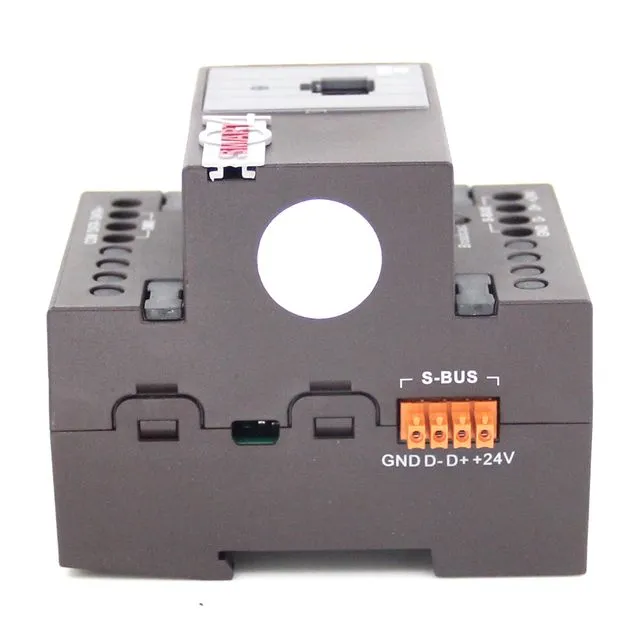

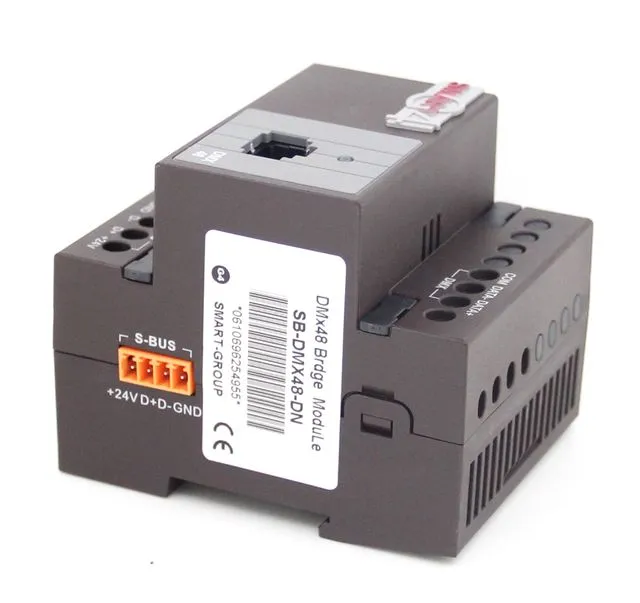

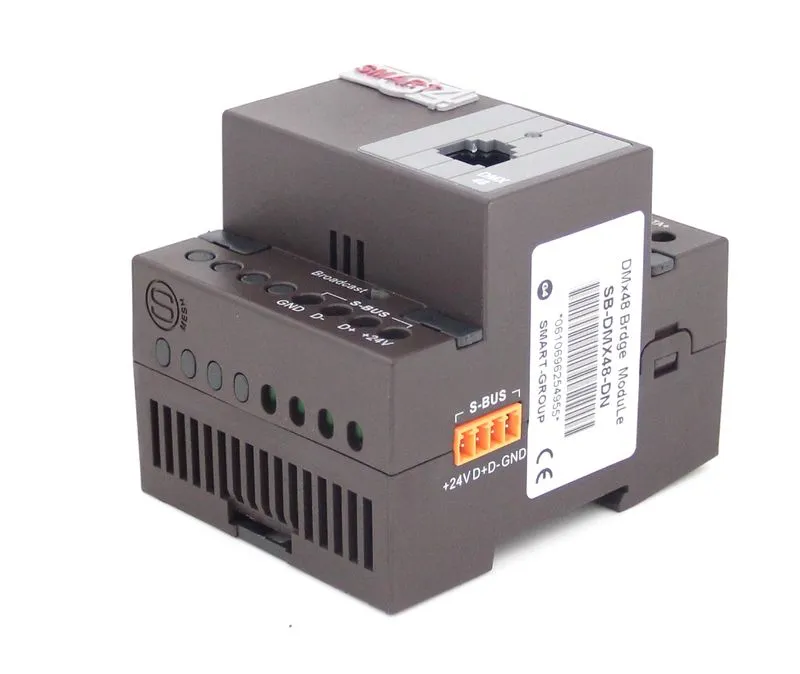

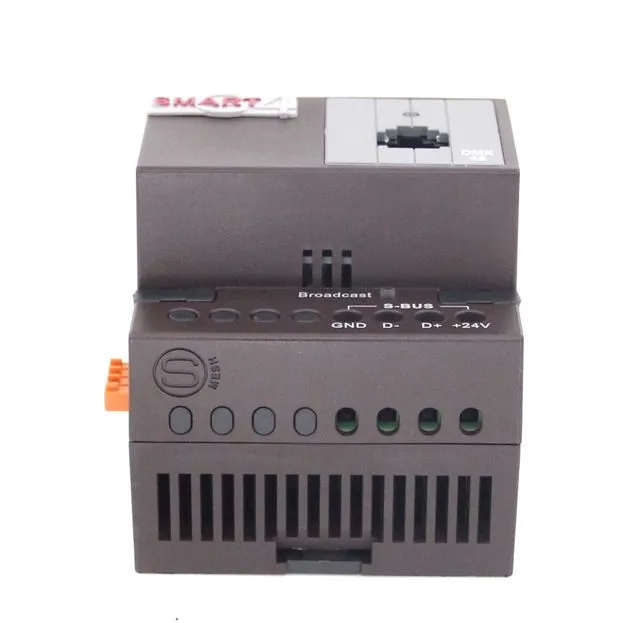

The S-BUS to DMX 48 Bridge Module by HDL (G3) is a high-performance communication interface designed to seamlessly connect HDL’s S-BUS automation systems with DMX lighting networks. This powerful bridge enables bidirectional communication between smart building controllers and DMX-based lighting fixtures, allowing for precise dimming, color control, and scene synchronization.

Engineered for reliable integration, the module supports up to 48 DMX channels, offering flexible configuration for a wide range of applications—from architectural lighting to stage effects and smart home installations. It converts control signals between S-BUS protocol and DMX512, ensuring smooth operation across devices.

Built for the HDL Buspro (G3) series, the S-BUS to DMX Bridge delivers stable performance, fast response, and easy installation. It’s an essential component for professionals seeking advanced lighting control within intelligent building automation systems.

⚙️ Key Features

• Converts S-BUS signals to DMX512 protocol
• Supports up to 48 DMX output channels
• Enables bidirectional communication between HDL and DMX devices
• Adjustable channel mapping and addressing
• Seamless integration with HDL Buspro and DMX controllers
• Compact DIN-rail mount design for easy installation
• High-speed communication with error detection
• Ideal for architectural, stage, and ambient lighting
• LED indicators for communication status
• Reliable operation under continuous use

💡 Applications

• Smart building lighting control
• Stage and theater lighting systems
• Architectural LED control
• Hotel and resort lighting automation
• Commercial building DMX integration
• Smart home lighting systems
• Event and decorative lighting control

📊 Technical Specifications

• Model: S-BUS to DMX 48 Bridge (G3)
• Input Protocol: S-BUS (HDL Buspro)
• Output Protocol: DMX512
• Channels: 48 DMX output channels
• Power Supply: 15–30V DC
• Mounting Type: DIN-rail
• Communication Port: RJ45 / Terminal Block
• Operating Temperature: -5°C to +45°C
• Compatibility: HDL Buspro G3 Systems
• Build Material: Industrial-grade ABS / Metal
