For use with Ceiling FAN and Wall Fans, 5 Speed, 6-Channel/Fan Module 1.5A Load per Channel, Designed to Give Multi Speed Fan Control For Up To 6 Ceiling fans 1.5Amp per Fan, (Off,Low,Med,Fast Speed) improved Pulsing Noise Reduction Technology, BUS Enabled. Mannual Programming Enabled. (Warning: Maximum Load is 1.5A per Channel).. ** Make sure to use Fast Burning Fuses between load and each of the channels.

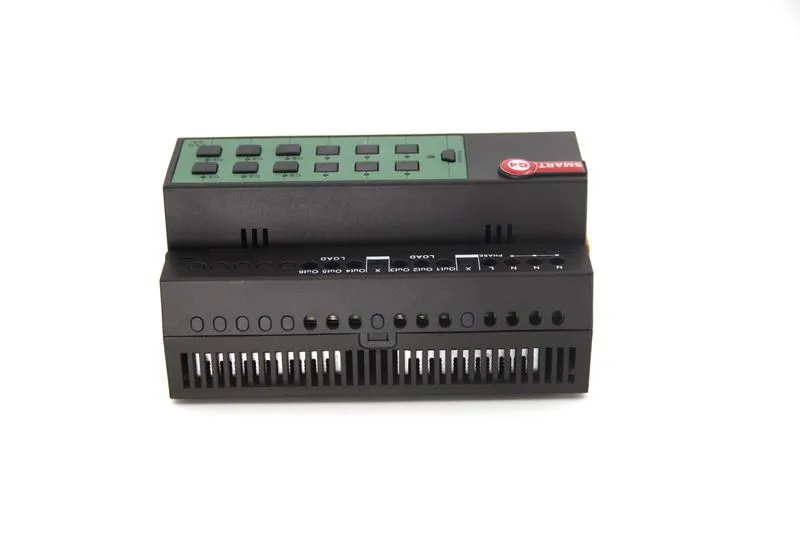

The 6 Fan Motor Speed Control Module 1.5A (G4s) is an advanced multi-channel fan speed controller designed to deliver precise, reliable, and energy-efficient control of up to six fan motors simultaneously. Built on the G4s automation platform, this module ensures smooth fan speed adjustment for HVAC systems, ventilation units, air purifiers, and industrial cooling fans.

Each of the six channels supports up to 1.5 Amps per channel, allowing flexible speed regulation using phase-cut or PWM control techniques. The module is fully compatible with G4s automation controllers, enabling seamless integration into smart home, hotel, and building management systems.

With features like low noise operation, stable voltage regulation, and DIN-rail mounting, this fan controller is perfect for energy management applications that require dependable airflow control with automation feedback and safety protection.

🔍 Key Features

• 6 independent fan control channels, 1.5A per channel
• Smooth speed regulation using phase or PWM control
• Low noise and energy-efficient operation
• G4s communication protocol for full system integration
• Real-time feedback and protection for each channel
• Supports manual or automated fan speed control
• Compact DIN-rail design for easy installation
• Ideal for HVAC, ventilation, and air management systems
• Overcurrent and short-circuit protection built-in
• Compatible with smart home and BMS systems

🏠 Applications

• Centralized fan speed control in smart buildings
• HVAC and ventilation system automation
• Hotel and office room fan speed regulation
• Air handling units and exhaust systems
• Smart home air management and comfort control
• Industrial automation requiring multiple fan controls
• IoT-based fan monitoring and management systems
• Green building energy management solutions

⚙️ Technical Specifications

• Model: 6 Fan Motor Speed Control Module (G4s)
• Channels: 6 (Independent fan speed channels)
• Rated Load: 1.5A per channel
• Total Load Capacity: 9A Max
• Input Voltage: 110–230V AC
• Communication: G4s Bus Protocol
• Control Type: Phase-cut / PWM
• Protection: Overload / Short-circuit / Overheat
• Mounting: DIN-Rail / Panel Mount
• Operating Temp: –5°C to +50°C
• Compatibility: G4s automation systems and controllers
