ViewDIN-Rail Mount S-BUS enabled, works as Stand alone and network enabled, Total 45 Ports I/O 16Ch Relays Each is 10A, and 29 Channel Dry contacts Inputs. Supports Scene, Sequence, Que. Can Create Schenes by Simple NO/NC Built in Logic and Time Clock, AC and floor heating function. (Requires Harness for Input easy connection Recomended).

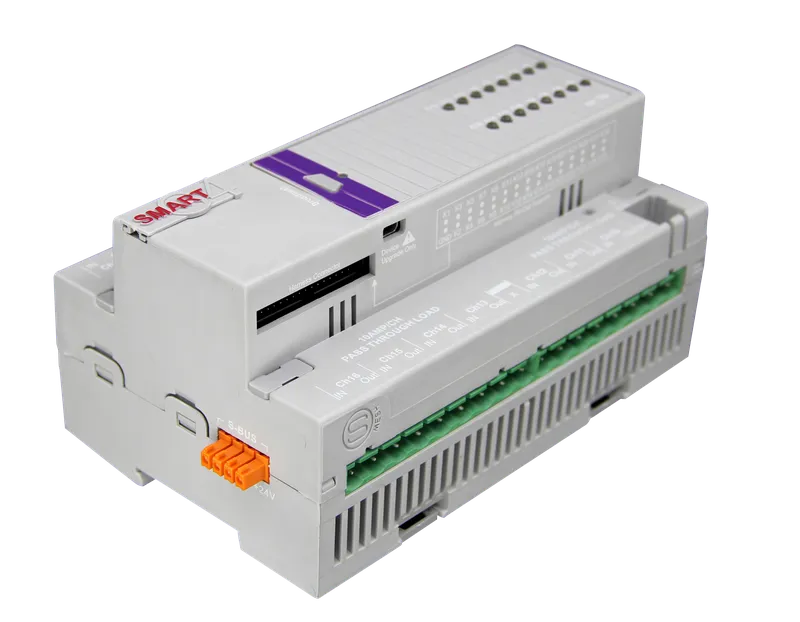

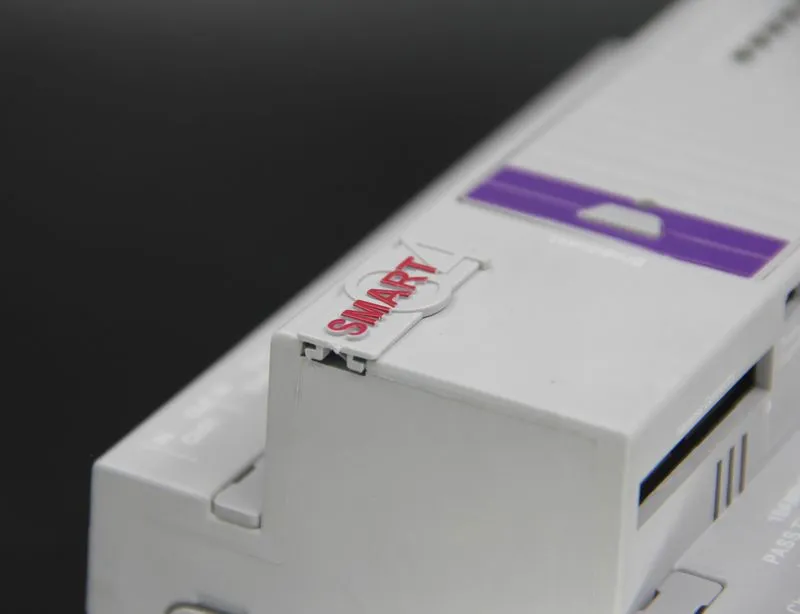

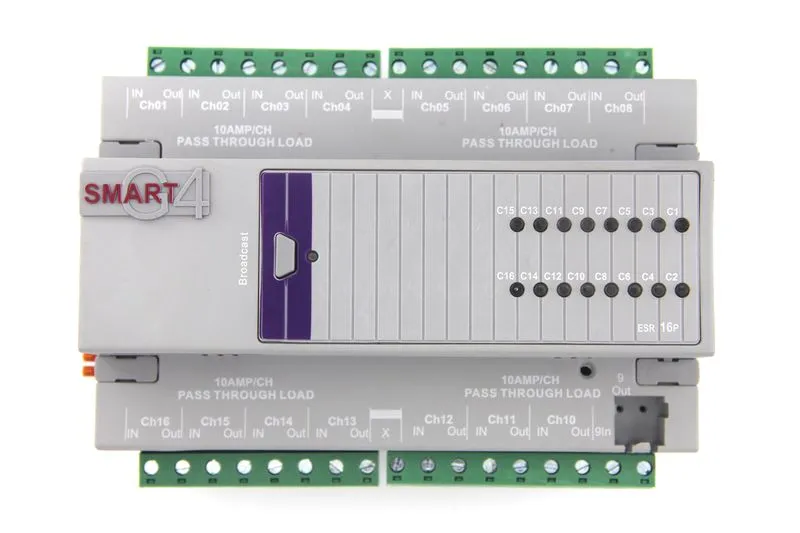

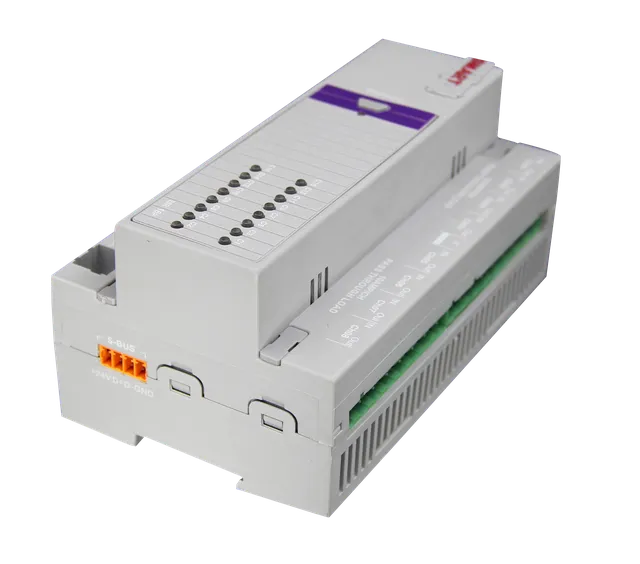

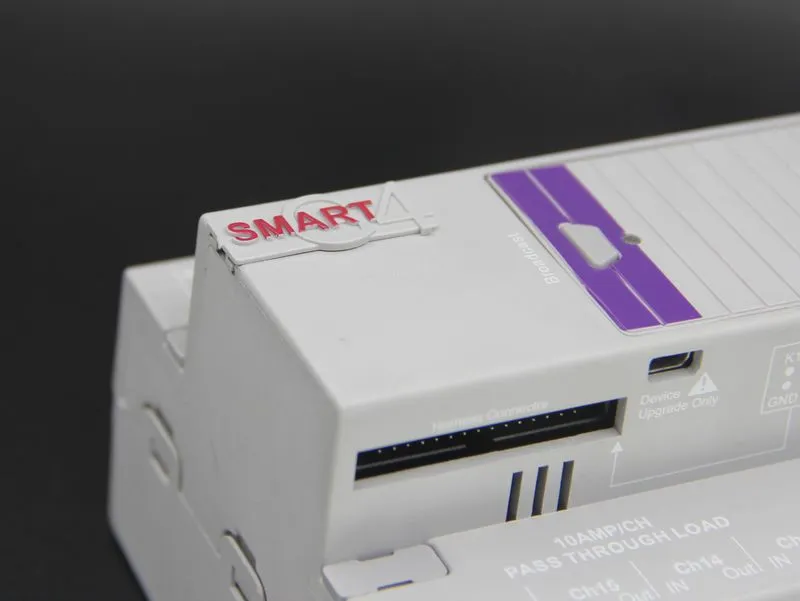

Gladiator16P (I/O 24 Dry Inputs, 16ch Output 10A Each) Super I/O
Category: Multifunction Relay controller, Latching Relay Actuator, Momentary Relay Actuator, Momentary Relay Actuator IO Controller, Mini Mix Module, Mini Relay Module
Model: SB-Gladiator16-DN
Total Price: $313.00
Stock Status: In Stock
The ESR 16 is a high-performance 16-channel Electronic Switch Regulator built for efficient and silent load switching in home automation, industrial control panels, and smart energy systems. Designed to control lights, fans, and other electrical appliances, the ESR 16 offers solid-state switching for noise-free and long-lasting performance.
With 16 independent output channels, this module allows for precise automation and integration with smart switchboards, IoT devices, and PLC-based systems. Unlike mechanical relays, the ESR 16 provides spark-free operation, fast switching speed, and minimal maintenance, making it ideal for modern automation infrastructure.
It is fully compatible with Arduino, ESP32, Raspberry Pi, BMS, and other control systems, and supports low-voltage triggering (3.3V/5V). Whether you're building a custom smart panel or managing distributed loads in a building, the ESR 16 delivers efficiency, safety, and convenience.
Key Features:
- 16 electronically controlled output channels
- Solid-state (triac/MOSFET) switching – silent & reliable
- Supports AC loads like fans, lights, and small appliances
- Compact PCB for DIN rail or surface mounting
- Compatible with Arduino, Raspberry Pi, PLCs, and IoT controllers
- LED indicators for channel status
- Fast switching with overload protection
Applications:
- Home automation panels
- Smart fan and light control systems
- Office/building energy management
- PLC-based automation
- Industrial control boxes
- IoT smart home systems
- Centralized load switching modules
Technical Specifications:
- Number of Channels: 16
- Switching Type: Solid-state
- Input Control: 3.3V/5V logic compatible
- Load Support: AC up to 230V (depending on configuration)
- Mounting: DIN rail or screw mount
- Protection: Short circuit & overload protection
