with scene controller. Mannual Programming Enabled. (Overheat, Overload Protection) single phase both 110/220 VAC, 50-60Hz. (Green operated supplied by 24VAC/25mA). Cascadable, Upgradable Via USB Cable (Warning: never Load the Module in Total More than 10A MAX)

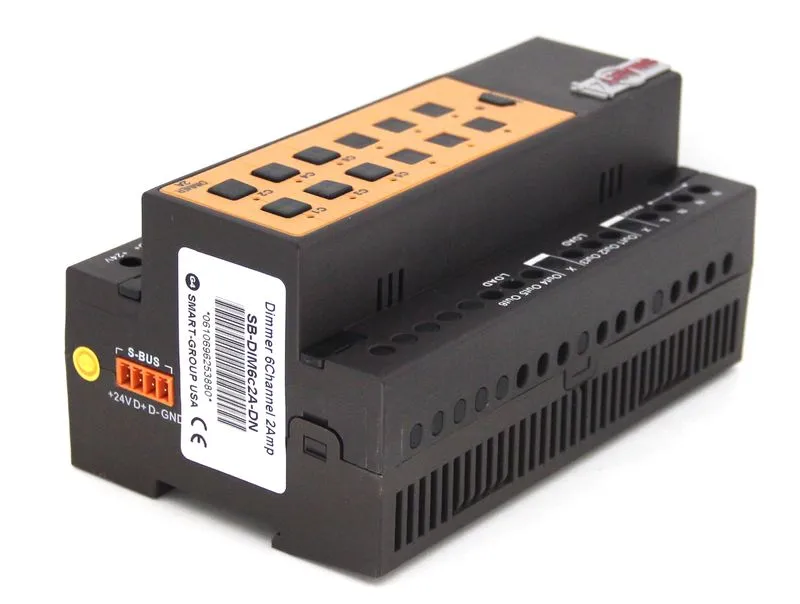

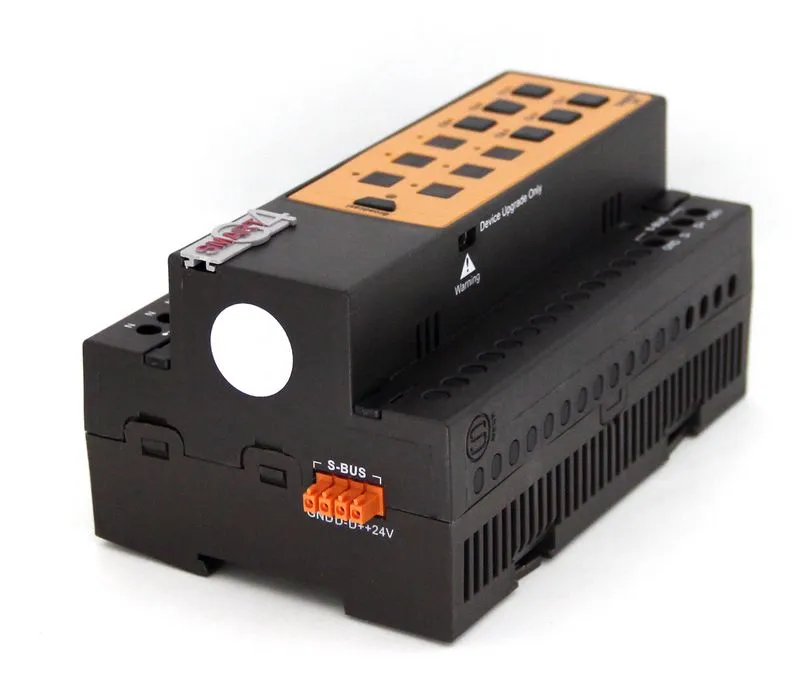

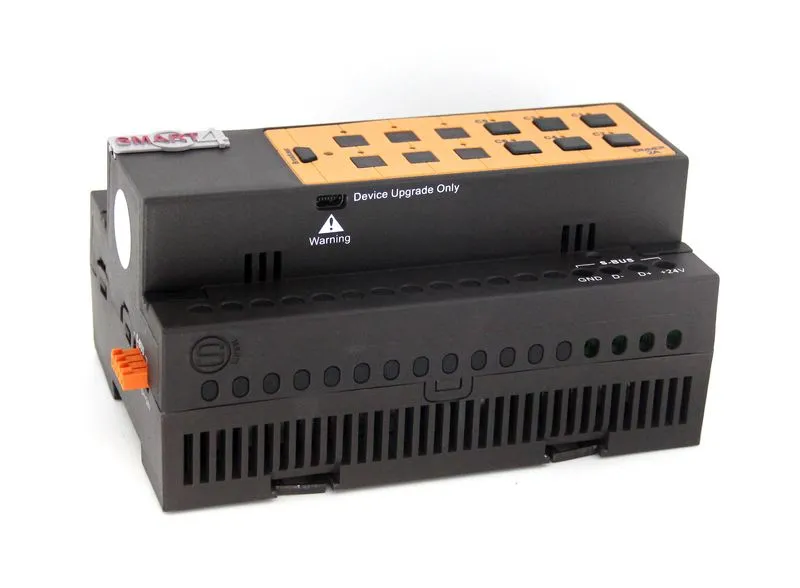

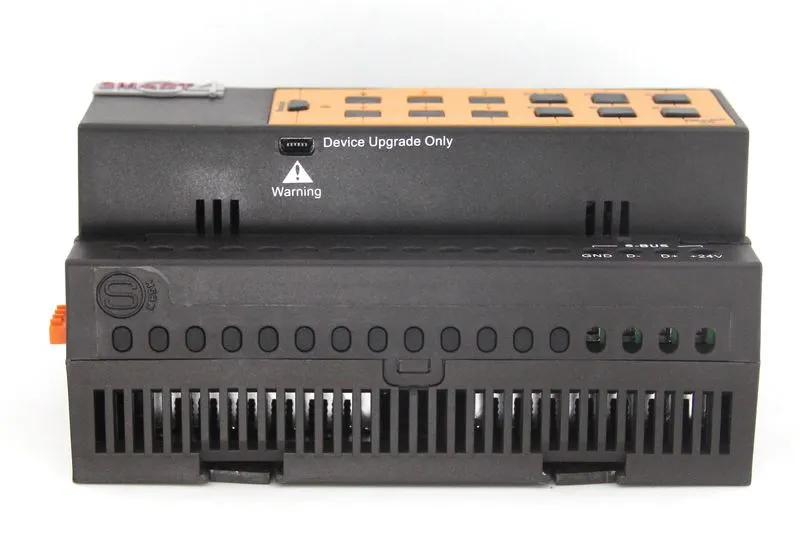

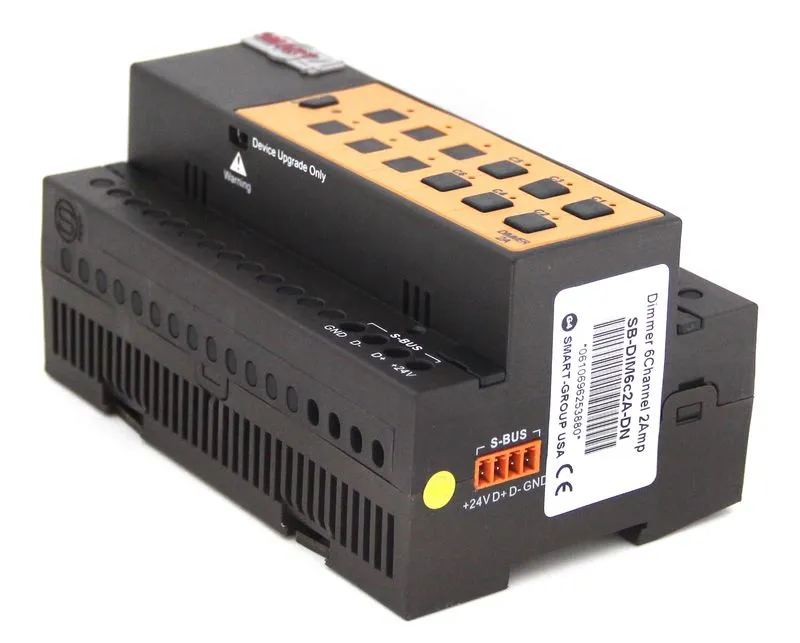

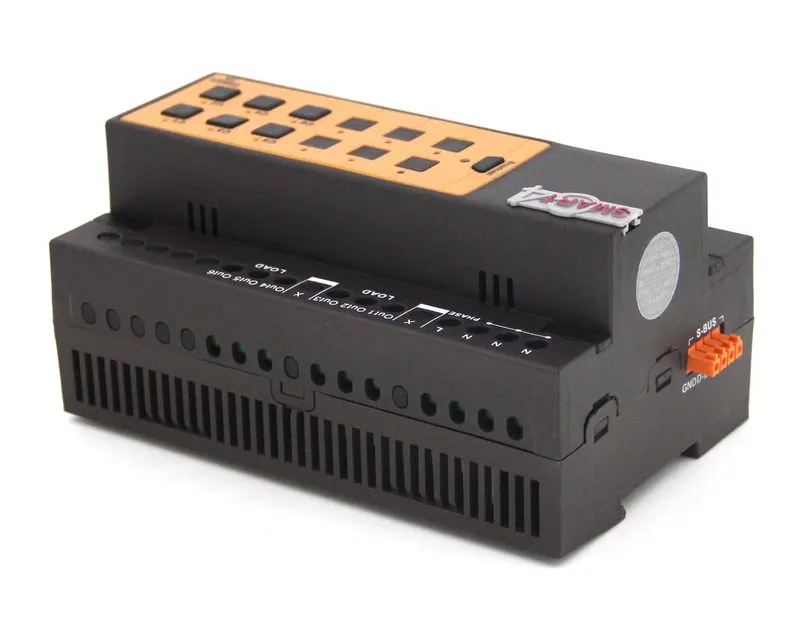

The D6 Dimmer 6CH 2A is a high-performance 6-channel AC dimmer module, designed for precise and efficient control of lighting and other AC loads. Each channel supports up to 2 Amps, making it ideal for LEDs, incandescent bulbs, fans, and other resistive or inductive loads across residential, commercial, and industrial environments.

Engineered for DIN-rail mounting, the D6 is part of the advanced G5 (Generation 5) series, ensuring compact design, easy integration, and long-term reliability. Built on triac-based phase control, it offers silent, flicker-free operation and supports most modern automation platforms including Arduino, ESP32, Raspberry Pi, and PLC systems.

Whether you're building a smart home, retrofitting a commercial building, or creating a custom industrial solution, the D6 delivers scalable dimming functionality with maximum flexibility.

Key Features

• 6 dimmable AC channels (2A each, total 12A capacity)
• DIN-Rail mountable design for easy installation
• Triac-based phase-cut dimming technology
• Flicker-free and silent operation
• Compatible with Arduino, ESP32, Raspberry Pi, PLCs
• Ideal for smart lighting, fan control, and AC loads
• LED status indicators for each channel
• G5 (Gen 5) model: enhanced performance and stability

Applications

• Smart home lighting control
• Office and commercial building automation
• Multi-zone lighting solutions
• Fan speed controllers
• Industrial AC load management
• Stage, hotel, and conference room lighting
• Custom PLC automation systems

Technical Specifications

• Channels: 6
• Max Load: 2A per channel
• Total Load: 12A
• Input Voltage: 110–230V AC
• Control Signal Input: 3.3V / 5V logic level
• Dimming Type: Triac-based phase control
• Mounting: DIN-Rail (Standard)
• Dimensions: Compact G5 format
