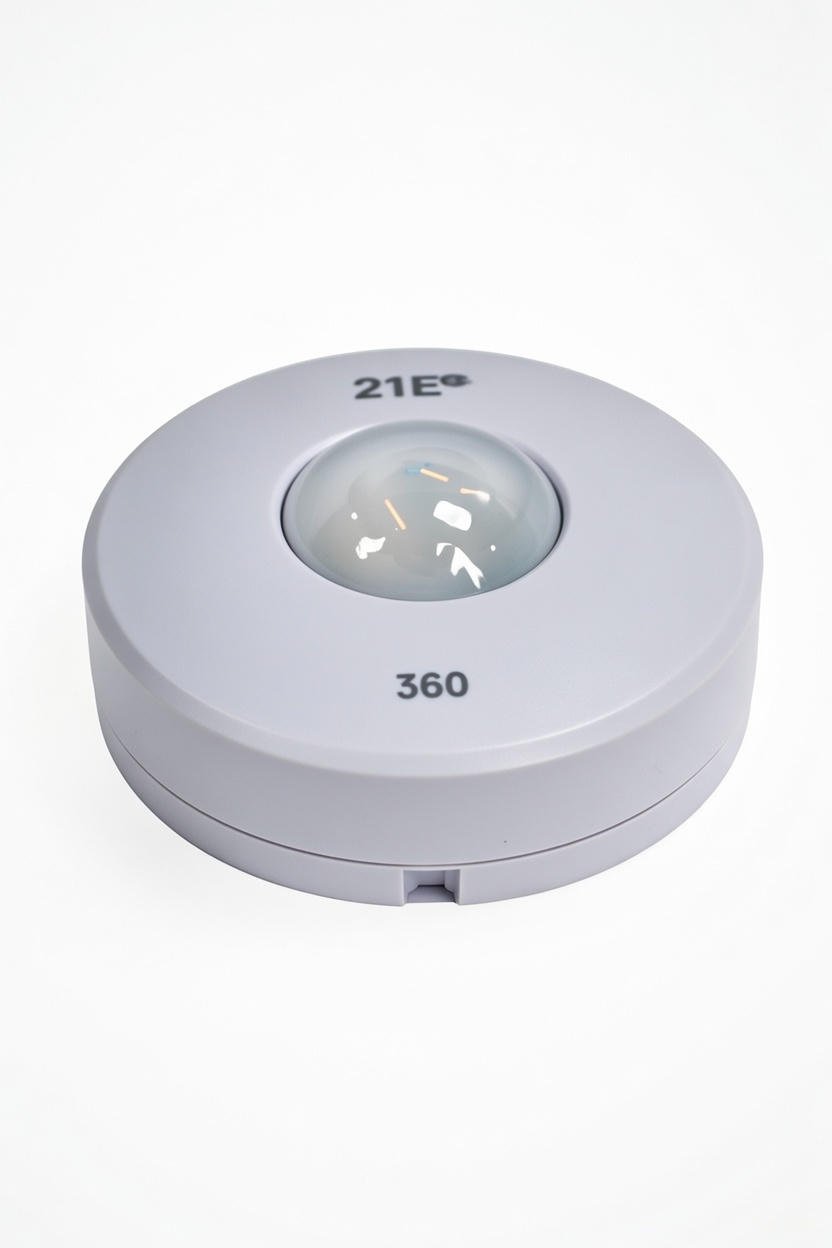

Ceiling Mount PIR Sensor 360 Degrees
Category: Sensor Detector, Dry Inputs, PIR, Controller, Multifunction, Ultrasonic, Counter, Surface, Mini IO, Mag Reed
Model: OE-PIR6-CL
Total Price: $27.00
Stock Status: In Stock
The Ceiling Mount PIR Sensor 360 Degrees is a passive infrared human-motion detection sensor engineered for automatic lighting control, occupancy monitoring, and smart building applications. Designed to detect motion based on body heat infrared variations, it activates connected loads such as lights, relays, alarms, HVAC, or automation logic triggers when movement is detected within its circular sensing field.
With a 360° panoramic detection range, the sensor covers a large area when ceiling-mounted, making it ideal for hallways, cabins, lobbies, washrooms, meeting rooms, storage areas, and energy-controlled zones. It reduces power wastage by automatically turning OFF lights/devices when no movement is detected for the preset delay time.
It offers fast trigger response, noise-free operation, stable sensitivity, and is compatible with automation controllers like PLC, relay modules, sBUS, KNX gateways, IoT hubs, and smart lighting systems. The sleek dome-design fits flush into ceilings for a professional finish.
Key Features
- 360° PIR motion detection for full-area coverage
- Occupancy-based auto ON/OFF automation
- Adjustable detection range & time delay (model-based)
- Supports lighting, alarms, HVAC, automation logic
- Low power consumption & long operational life
- False-trigger optimized sensing algorithm
- Recessed ceiling mount — aesthetically clean design
- Compatible with automation modules & relay interfaces
- Ideal for energy saving & building automation projects
- Stable operation with passive infrared sensing technology
Applications
- Automatic room & corridor lighting
- Commercial building automation & occupancy monitoring
- Hotel, office, school & mall infrastructure control
- Washroom & utility area auto lighting
- SMART home automation and IoT lighting triggers
- Security alarm activation based on motion
- HVAC-based presence control system
- Warehouse, parking & stair lighting automation
- Meeting rooms & cabins power saving automation
- BMS project integration
Technical Specifications
| Specification | Details |
|---|---|
| Detection Type | Passive Infrared (PIR) |
| Detection Angle | 360° Full Coverage |
| Mounting Type | Ceiling Recess / Surface Based on variant |
| Detection Range | Upto 6-12m (Model based) |
| Operating Voltage | 110–240V AC / Low Volt Options (where applicable) |
| Output Type | Relay/Signal Trigger Output |
| Delay Time | Adjustable Auto OFF Timer |
| Power Consumption | Ultra Low Standby |
| Install Height | Ideal 2.5m – 4m |
| Use Case | Lighting/HVAC/Security Trigger |
| Indicators | Motion Detection LED |
| Operating Temp | -10°C to +50°C |
Why Choose 360° Ceiling PIR Sensor?
- Energy saving automation without manual switches
- Provides uniform 360° detection coverage
- Sleek ceiling design blends into modern interiors
- Compatible with smart automation systems
- Highly reliable for commercial deployment
- Minimal maintenance with long life sensing element
