ViewS-bUS enabled, 6 Channel control with 16A Relay cut off. Mannual Programming Enabled. (Overheat, Overload Protection) single phase both 110/220 VAC, 50-60Hz. (Green operated supplied by 24VAC/25mA). Cascadable, Upgradable Via USB Cable. (Standard Note: Installer Must Calculate the S- BUS Power Supply Needs Accurately to Give enough Juice to all sbus and 0-10V Ballasts as Per Ballast Model and Requirement)

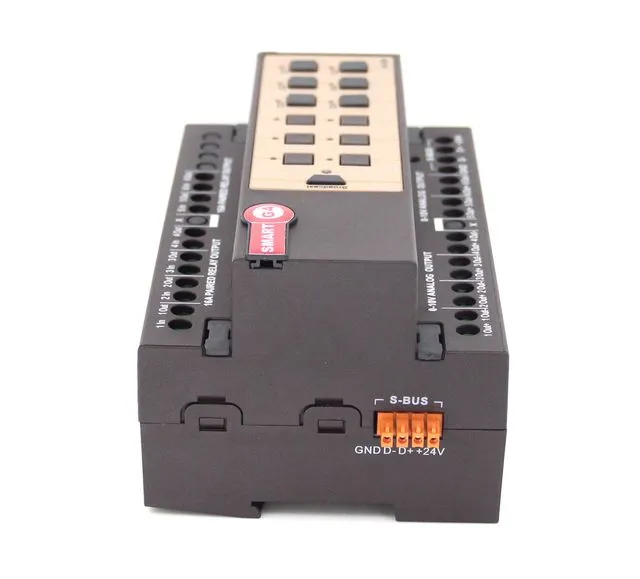

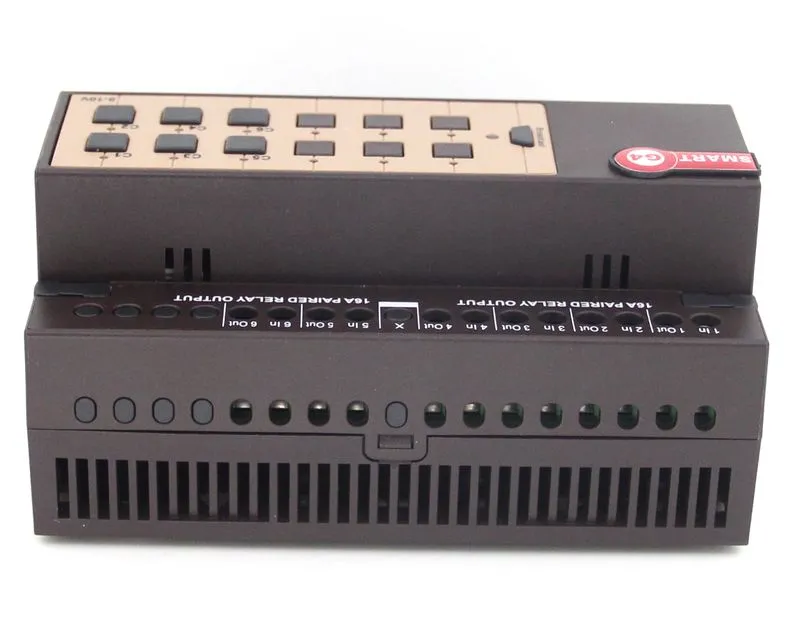

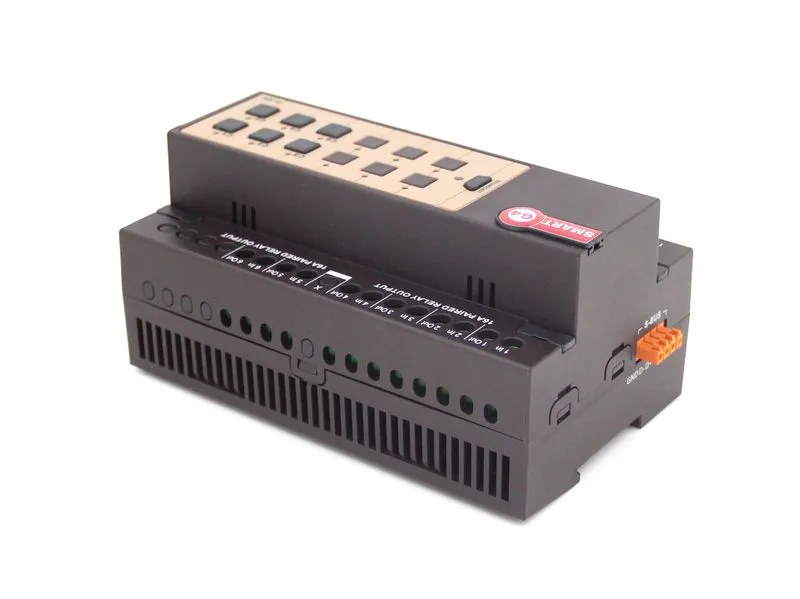

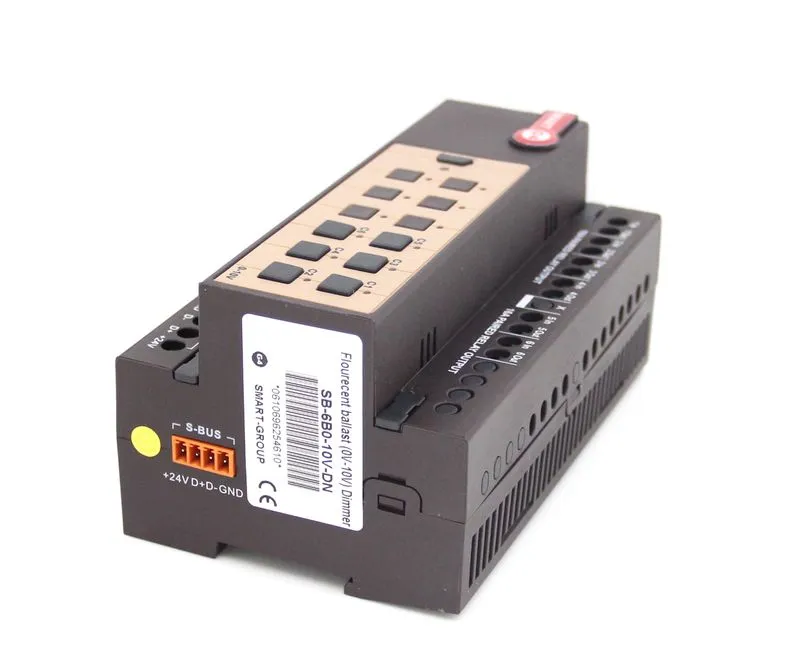

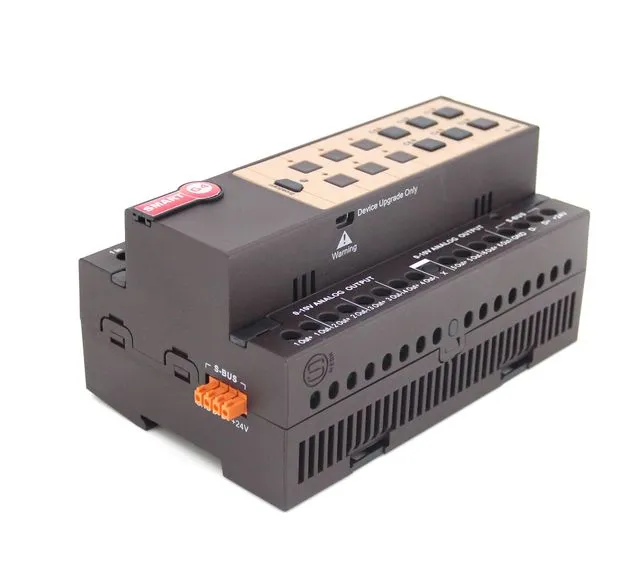

6-ch, Flourecent ballast (0V-10V) Dimmer 16A/Ch (G4) (0V-10V) Valve Attenuator Control (G4)
Category: Lighting Dimming Control LDP, RCU Area Controller, Mini Dimmer, Mini Mix Module, Mini Mix Module
Model: SB-6B0-10V-DN
Total Price: $290.00
Stock Status: In Stock
The 6CH Fluorescent Ballast (0–10V) Dimmer 16A/Ch (G4) is a high-power analog dimming module designed for commercial lighting, building automation, and industrial control systems. Supporting 6 independent 0–10V control channels, this dimmer allows smooth brightness adjustment for fluorescent ballasts, LED drivers, and valve attenuator systems.
Each channel is capable of handling up to 16 Amps, ensuring powerful and reliable operation even in large-scale installations. Built with advanced G4 (Generation 4) hardware, it provides precise signal attenuation, noise-free operation, and excellent heat management for long-term reliability.
This module is ideal for smart lighting, HVAC valve control, industrial process automation, and energy-efficient dimming applications.
Key Features
- 6 independent dimming channels, each supporting 0–10V analog input
- High current handling capacity — 16A per channel
- Compatible with fluorescent ballasts, LED drivers, and 0–10V valves
- Supports smooth, flicker-free dimming and analog voltage control
- DIN-rail (G4) mount for easy integration into control panels
- LED indicators for channel status
- Works with PLC systems, Arduino, Raspberry Pi, ESP32, and industrial controllers
- Supports both dimming and valve attenuation modes
- Compact industrial-grade design with reliable screw terminals
Applications
- Commercial and industrial lighting automation
- Fluorescent and LED ballast dimming control
- Smart building lighting systems
- PLC and SCADA integration
- HVAC valve and actuator attenuation
- Process automation and analog signal control
- Stage, theater, and architectural lighting
- Smart hotel and office lighting management
- Energy management systems
- Industrial automation control cabinets
Technical Specifications
| Specification | Details |
|---|---|
| Channels | 6 Independent (Analog 0–10V Control) |
| Max Load | 16A per channel |
| Input Voltage | 110–230V AC |
| Control Signal | 0–10V Analog (Sink/Source) |
| Compatibility | Fluorescent ballasts, LED drivers, Valve actuators |
| Isolation | Opto-isolated inputs |
| Mounting | DIN-Rail (G4) |
| Indicators | Channel ON/OFF LEDs |
| Operating Temp | -10°C to +70°C |
| Control Interface | PLC, Arduino, ESP32, Raspberry Pi |
| Dimming Type | 0–10V Analog Attenuation |
Why Choose the 6CH 0–10V Dimmer (G4)?
- Built for industrial-grade lighting and valve control
- Supports high current loads for professional automation use
- Delivers smooth analog dimming without flicker or delay
- Designed for easy integration into PLC and automation systems
- Energy-efficient, durable, and low-maintenance
- Compact, reliable, and G4-engineered for high performance
